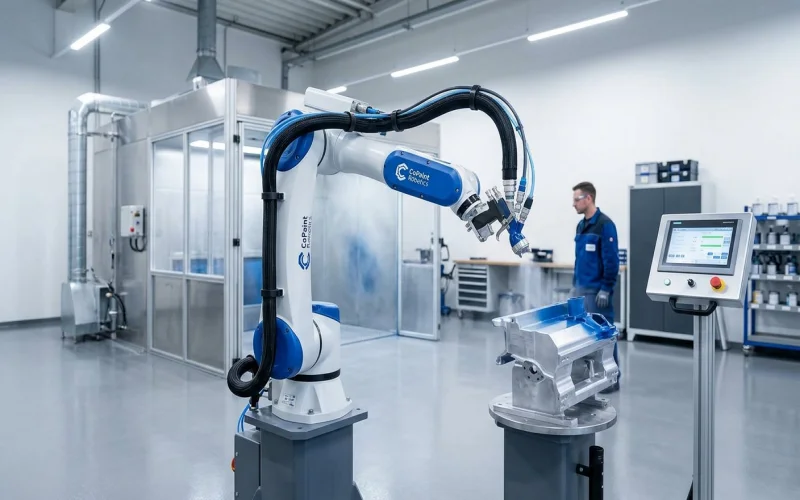

What Makes Our Intelligent Spray Painting Robot Different?

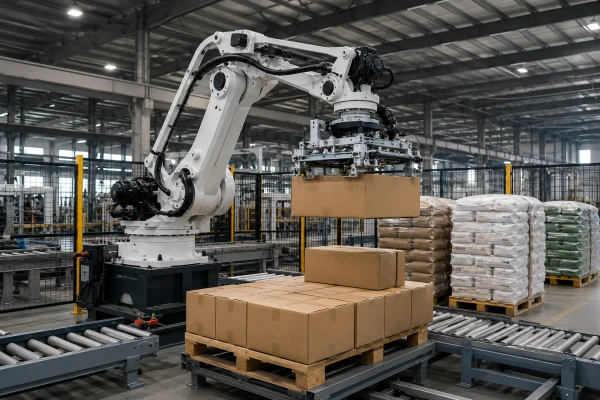

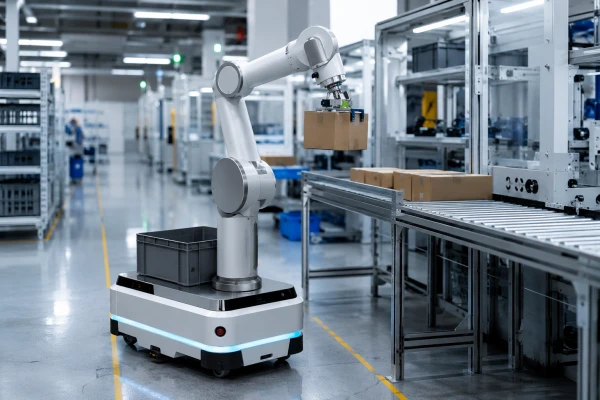

Applications of Material Handling Robots
GLS Material Handling Robots beat competing machines and manual handling to optimize your workshop’s overall operational cost.
Space-Saving Architecture
Our collaborative spray painting workstation occupies just 1.8㎡ – 75% smaller than conventional robotic cells. You can install it directly in existing spray booths without facility renovation.
Drag-and-Teach Programming
No coding required. Your operators manually guide the robot arm to key positions, and our system auto-generates optimal spray paths in under 30 minutes.
Multi-Material Compatibility
Handles 15+ coating types: water-based, solvent-based, UV-curing, powder coatings, and high-viscosity materials. Switch between paint systems in 10 minutes.
Modular Quick-Change System
Swap spray guns, nozzles, or grippers without tools. Pre-calibrated modules maintain ±0.05mm repeatability after replacement.
Integrated Safety Features
Built-in force sensors stop motion instantly when detecting 10N contact force – eliminating need for expensive safety caging.
Real-Time Quality Monitoring
Embedded sensors track film thickness, spray pattern, and air pressure every 0.1 second, alerting you to deviations before defects occur.
4 Reasons To Choose A Spray Painting Robot
According to survey data from the Ministry of Industry and Information Technology of China in 2023, 68% of small and medium-sized manufacturing companies encountered the main difficulties in the spraying industry.
Rising costs
The annual salary of skilled spray painters is RMB 120,000-180,000, and the turnover rate exceeds 40%. It is difficult to find one during the peak season.
✓ Labor cost ↑15%
Unstable quality
The defective rate of manual spraying is 8-15%, the average annual rework loss is 500,000+, and customer complaints are difficult to handle.
✓ Defect rate 8-15%
Employment risks
Long-term exposure to toxic VOCs causes occupational diseases, and post-95s firmly refuse to enter spraying jobs.
✓ The employment gap is very large
Space constraints

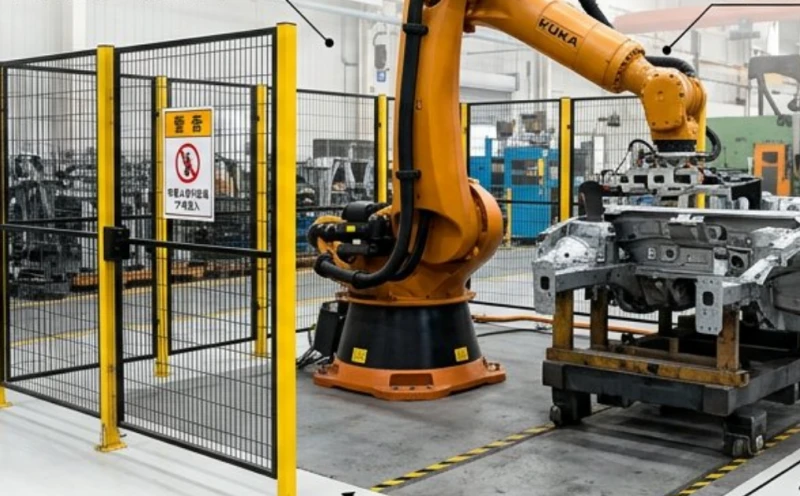

Traditional robots require 6-10 square meters + safety fence, which cannot be accommodated in small and medium-sized workshops.
✓ 68% of companies are limited by space

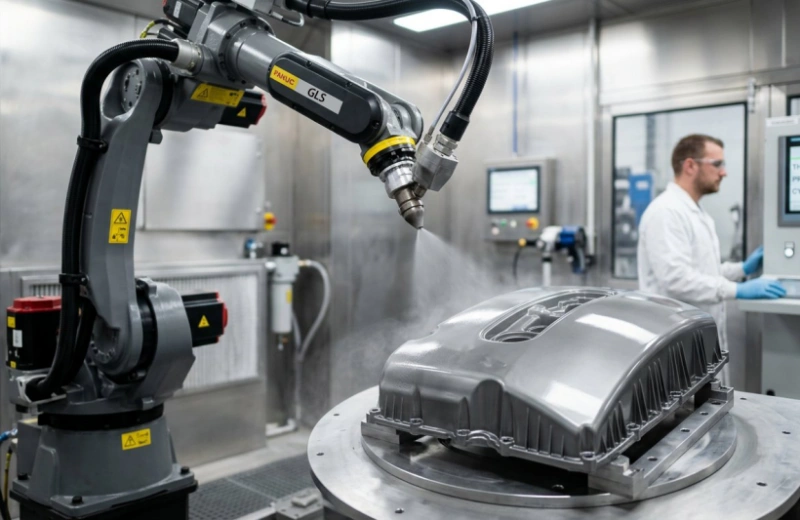

GLS Spray Painting Robot Solution
①GLS spraying robot workstation solves your spraying labor, quality, line modification, and production expansion problems.
②The workstation is equipped with a lightweight six-axis collaborative arm, a precision atomization system and AI trajectory optimization, and is delivered as a one-stop package.
③ It can achieve automotive-grade spraying accuracy at low cost, and is suitable for various workpieces such as mobile phone cases and bumpers. It is compatible with the original production line without significantly changing the process.
④ Allow your daily production to be easily increased from 500 pieces to 5,000 pieces without adding additional hardware to expand production.
Advantages Of The GLS Spray Robot
Engineered for Performance and Reliability
Carbon Fiber Arm Construction
Aerospace-grade composite reduces arm weight by 40% while maintaining 50,000-hour service life. Faster acceleration cuts cycle time 25%.
Anti-Static Powder Coating
All robot surfaces feature conductive coating rated for Zone 2 hazardous areas. Certified for explosive atmosphere operation (ATEX compliant).
Self-Cleaning Spray Circuit
Automated solvent purge sequence prevents nozzle clogging. Reduces maintenance intervals from weekly to monthly, saving 4 hours per week.
Vision-Guided Positioning
3D camera scans part geometry in 8 seconds. System auto-adjusts spray distance and angle for ±5mm part placement variations.
Recipe Management System
Cloud-based library stores unlimited coating programs. One-click recall ensures consistent quality across shifts and operators.
Energy-Efficient Operation
0.8kW average power consumption – 60% less than pneumatic systems. Annual electricity cost under $280 for dual-shift operation.
Fume Extraction Integration
Pre-wired connections for booth ventilation systems. Automatic airflow adjustment maintains 0.5m/s capture velocity during robot motion.
Mobile Control Pendant
Wireless touchscreen lets operators adjust parameters from safe observation distance. Real-time video preview shows spray pattern before production start.

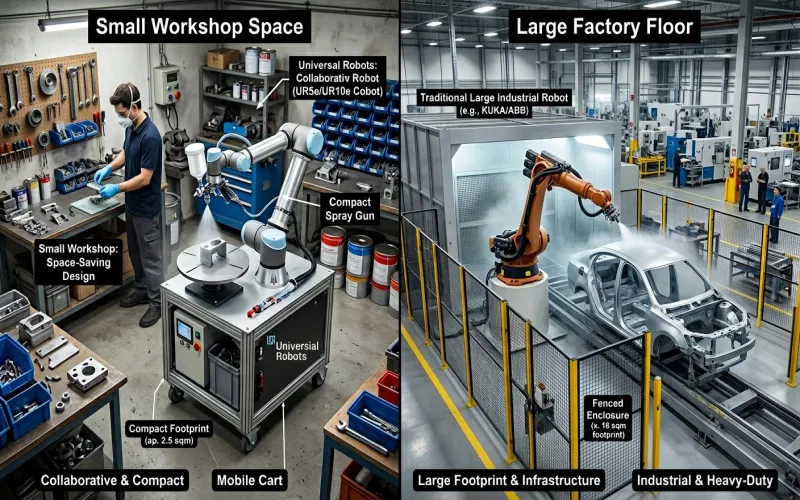

Why is "small" an advantage?
Our lightweight painting robot is not a performance reduction, but a dedicated optimized design for small and medium-sized workpiece scenarios.
| Comparison Dimension | Traditional Large Robot | GLS Small Spray Robot | Advantage Explanation |
|---|---|---|---|
| Floor Space | × 6–10 m² (with safety fence) | ✓ 1.8 m² (no fence required) | Saves 75% workshop space |
| Equipment Weight | × 180–350 kg | ✓ 38 kg | Portable, single-person handling |
| Deployment Cycle | × 10–14 days | ✓ 3 days | Minimizes production downtime loss |
| Programming Method | × Code programming (professional engineer needed) | ✓ Drag-and-drop teach mode (master in 30 mins) | Zero technical entry barrier |
| Initial Investment | × 350,000–800,000 CNY | ✓ 120,000–250,000 CNY | Cuts entry cost by 60% |
| Applicable Workpieces | × Large parts over 500 mm | ✓ Medium & small parts: 50–800 mm | Perfect for small & batch production |
| Power Consumption | × 3.5 kW/h | ✓ 0.8 kW/h | Saves 12,000 CNY electricity cost yearly |
| Annual Maintenance Cost | × 30,000–50,000 CNY | ✓ 8,000 CNY | Modular design for easy upkeep |
Three Core Technical Breakthroughs
Carbon fiber composite robotic arm
• Weight reduced by 40% (25kg→15kg)
• Movement speed increased by 30% (max 2.5m/s)
• Energy consumption reduced by 55%
• Service life extended to 50,000 hours
✓ TÜV certification
Integrated control system
• Integrated control cabinet + air compressor station + paint supply system
• Reduce wiring by 70% (reduce points of failure)
• Debugging time reduced from 8 days to 1 day
• Relocation costs reduced by 80%
✓ Invention patent
Adaptive spraying trajectory algorithm
• Visual scanning accuracy ±0.3mm
• Dynamically adjust spray gun attitude and speed
• Film thickness uniformity ≥95% (traditional only 80%)
• First pass rate from 89%→99.2%
✓ SGS certification

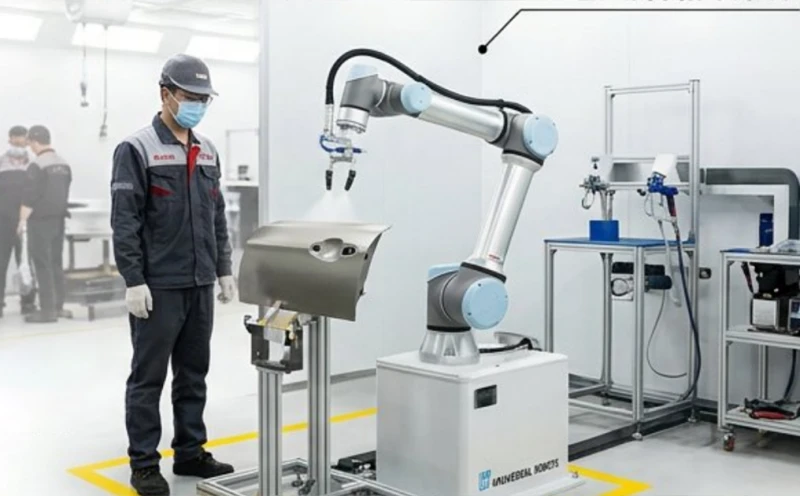

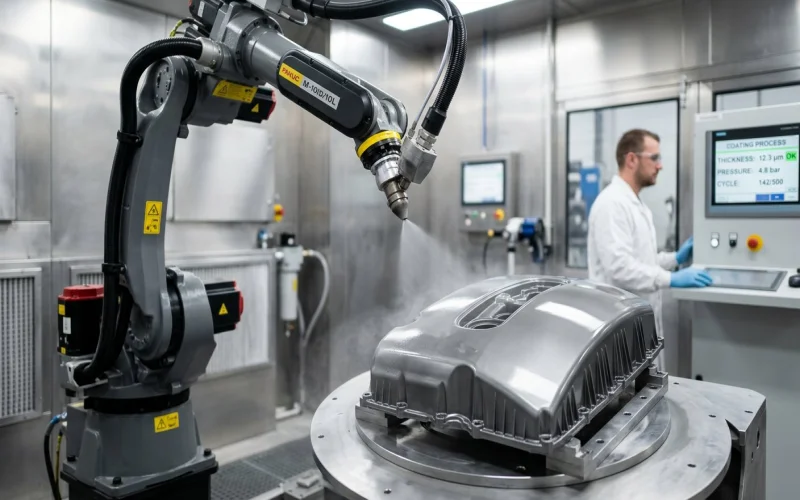

Spray Painting Robot Micron-Level Film Control
The deviation of manual spray paint film is ±15μm, and the rework rate is as high as 8%–12%; our spray painting robot can stably control the paint film at 40–60μm, with an error of only ±3μm, and the quality of each finished product is uniform and uniform in every shift.
Regardless of your operator’s skill level, the precision atomization system will accurately lock the air pressure, paint flow rate and spray gun movement speed. The equipment stores the optimal spray parameters for all workpieces, so newcomers can start operating without a long break-in period.
You can also intuitively reap the benefits of cost reduction: the overspray rate is reduced from 35% to less than 15%, and paint consumption is directly saved by 18%–25%.
Quick Mold Change Reduces Downtime Losses
During peak seasons, shutdowns cause huge losses, and breakdowns can delay delivery and incur high expediting costs. The GLS spraying workstation adopts a modular split design, which is different from the one-piece structure.
Once a part fails, the operator can replace it by himself within 30 minutes without having to wait for an after-sales engineer. The equipment monitors more than 30 operating data in real time and can provide early warning of maintenance problems 2-3 weeks in advance.
Chery Automobile’s second-tier auto parts manufacturer processed 890,000 workpieces for 18 consecutive months without any unexpected shutdowns.
Ready to Transform Your Coating Process?
Join 600+ manufacturers worldwide who have revolutionized their finishing operations with GLS collaborative spray painting robots.
Applications of Spray Painting Robot
Versatile Solutions Across Multiple Sectors

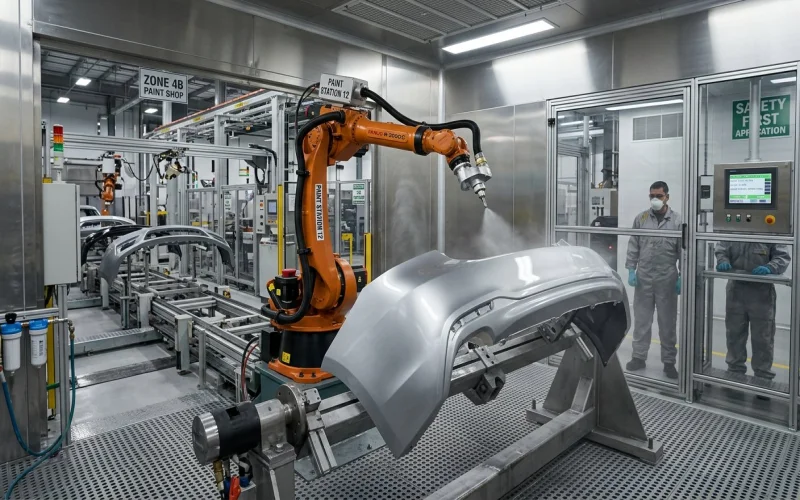

Automotive Component Finishing
Adapted to auto parts such as bumpers, grilles, trim strips, etc., it can stably produce A-level paint and meet the strict color matching standards of OEMs.

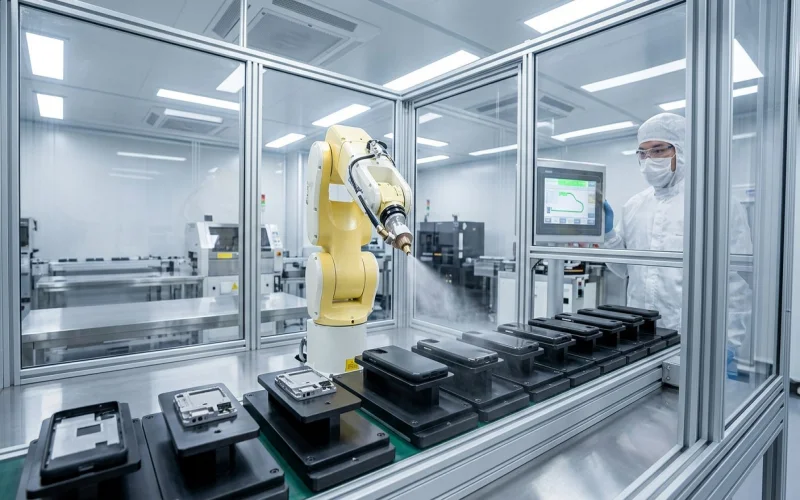

Consumer Electronics Enclosures
Used in small casings for mobile phones, tablets, and wearable devices, it has an ultra-high first-time yield rate and completely reduces rework costs.

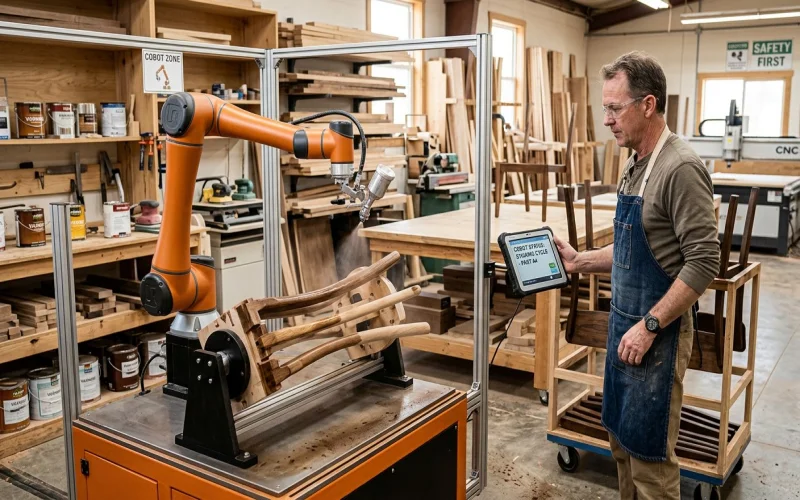

Furniture & Cabinetry Production
It is suitable for all kinds of special-shaped wooden furniture workpieces, while retaining the original texture and appearance, while increasing production efficiency by 3 to 4 times.
Industrial Hardware & Tools
Used for spraying thick coatings on power tools and hardware to evenly cover special-shaped surfaces and significantly reduce the defective scrap rate.
Medical Device Manufacturing
Meets the dust-free operation of biocompatible coating of surgical instruments, keeps all parameters on file, and complies with FDA traceability audit standards
General Manufacturing
Universal multi-category workpieces are flexible and compatible, and production capacity can be expanded without expensive equipment modifications or factory expansion.
Success Stories
Real Results from Real Customers
Previously, we had to manually spray bumpers with ABS textures, which resulted in a defect rate of 11% and a monthly investment of $47,000 in rework and scrap costs. Two GLS visual collaborative painting workstations are now online. The equipment can automatically adjust the spraying distance according to the workpiece texture. Three weeks after production started, the defect rate dropped to 1.4%, and no additional personnel were needed. Annual cost savings are $312,000, and the equipment pays for itself in just 5.2 months.
— Michael Patterson, Production Manager, Midwest Auto Parts Plant, Michigan, USA
Due to the surge in orders during the peak sales season, our factory did not have enough space to accommodate traditional robotic workstations. On the recommendation of a friend, we deployed 4 GLS small intelligent spray painting robots. This has increased our production capacity from 2,200 to 7,500 mobile phone cases; the first-time yield has increased from 89% to 98.7%, and the rework rate has been significantly reduced. This has indeed exceeded our expectations. GLS is a worthy partner.
—Jenny Liu, Director of Assembly Operations, Shenzhen Jingji, China
Frequently Asked Questions
Q1: Can it capture micro components within 1mm?
Can. GLS is equipped with an integrated vision system, which can accurately capture 0.1mm-level components and is suitable for micro-processing scenarios such as semiconductors and precision circuit boards.
Q2: Do lightweight models require safety fences?
No need. Ten levels of intelligent collision protection, it stops when touched, supports human-machine collaborative operation, and saves site and fence costs.
Q3: How long does it take to complete production line debugging for replacement products?
Completed the changeover in one day. Drag and drop teaching + 5-second quick fixture change, no need for professional programming, suitable for multi-category flexible production.
Q4: Which industry production standards does it adapt to?
Complying with 3C electronics, medical, semiconductor and other industry specifications, the anti-static body is suitable for level 6 dust-free workshops.
Q6: Minimum order quantity and delivery lead time?
Can be purchased individually, no minimum order required. 15-20 working days for standard models, and 5-10 working days for customized configurations.
Quality Assurance Service System
Quality assurance service system
Whole machine warranty
All functional modules are guaranteed to be repaired or replaced | 2 years
Core components
Servo motors, reducers, controllers | 1 year
Software upgrade
System updates and feature upgrades | Free for life
training services
New employee training, advanced training | Free for life
We will solve your concerns!
Our team does not have any experience in operating robots. Can we independently operate and maintain the equipment on a daily basis?
The GLS plug-and-play collaborative robot is equipped with a visual touch operation interface, and ordinary front-line production employees can master the operation in 30 minutes.
我们智能喷涂机器人直接适配原有喷漆房，不用改场地、不耽误工期，轻量化设计就可以让两名工人 20 分钟即可移位；三百公斤级传统机器人要吊装停工才能挪动。
这种灵活性能大幅缩短换型时间、提升设备利用率。俄亥俄州一位合作客户反馈，设备调试时长从原先 4 小时压缩至 35 分钟，每月能多承接 12 批订单产能。
